HERA LED is a trusted innovative LED lighting manufacturer based in Turkey. All productos are design and manufacture in their headquarters in Instanbul. With their philosophy: “the difference between good and gorgeous is just a bit more effort”. Our Company feels identify with their product and way of make so we established the relationship distributing their products in Spain.

They have ISO 9001:2008 quality management. All products are tested at internationally accredited laboratories and their inspection and control are performed decisively.

To see more about their products visit their website www.heraled.com

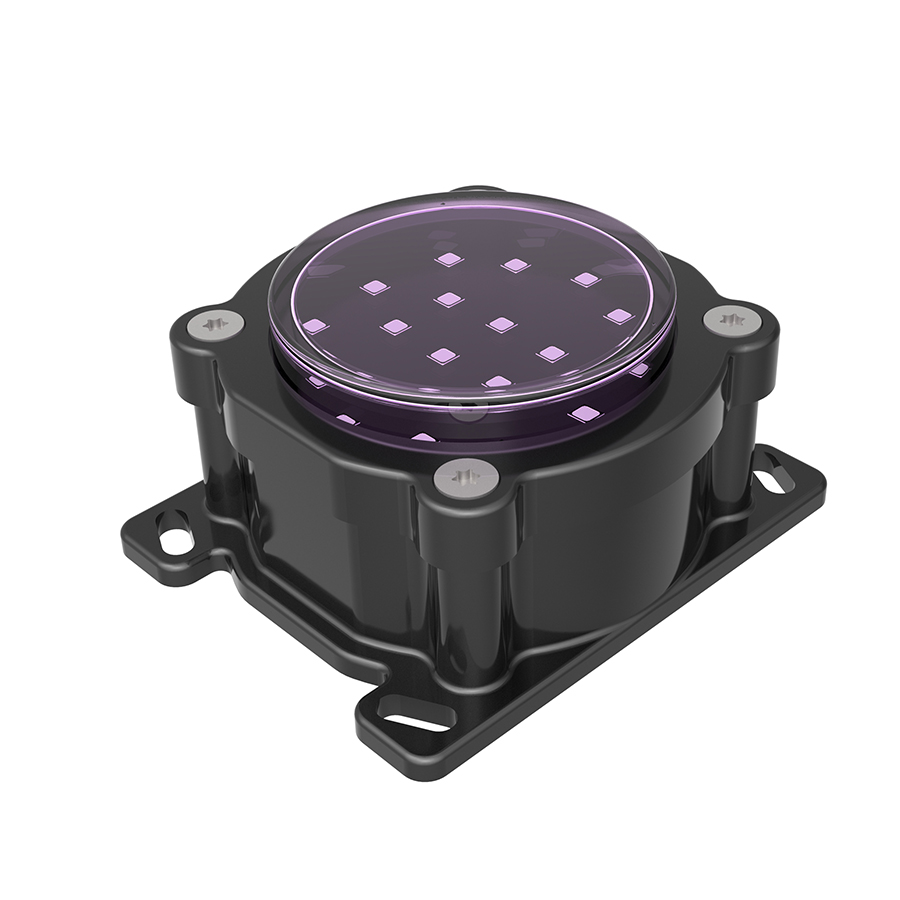

PD 60 PIXEL DOT

Hera PD®60 is a point pixel fixture with direct view type. It has 18 pieces 3 in1 chip leds at high brightness. It is visible at sunlight. Maximum 32 devices can be connected to each other. It is in IP67 protection class. The connection is made with waterproof 5 Pin IP67 Push-Lock type connector. It provides special video solutions with maximum brightness. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. It resistance to UV lights. It is made of aluminum body resistant against the challenging weather conditions.

PD 60 S PIXEL DOT

Hera PD®60 is a point pixel fixture with direct view type. It has 18 pieces 3 in1 chip leds at high brightness. It is visible at sunlight. Maximum 32 devices can be connected to each other. It is in IP67 protection class. The connection is made with waterproof 5 Pin IP67 Push-Lock type connector. It provides special video solutions with maximum brightness. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. It resistance to UV lights. It is made of aluminum body resistant against the challenging weather conditions.

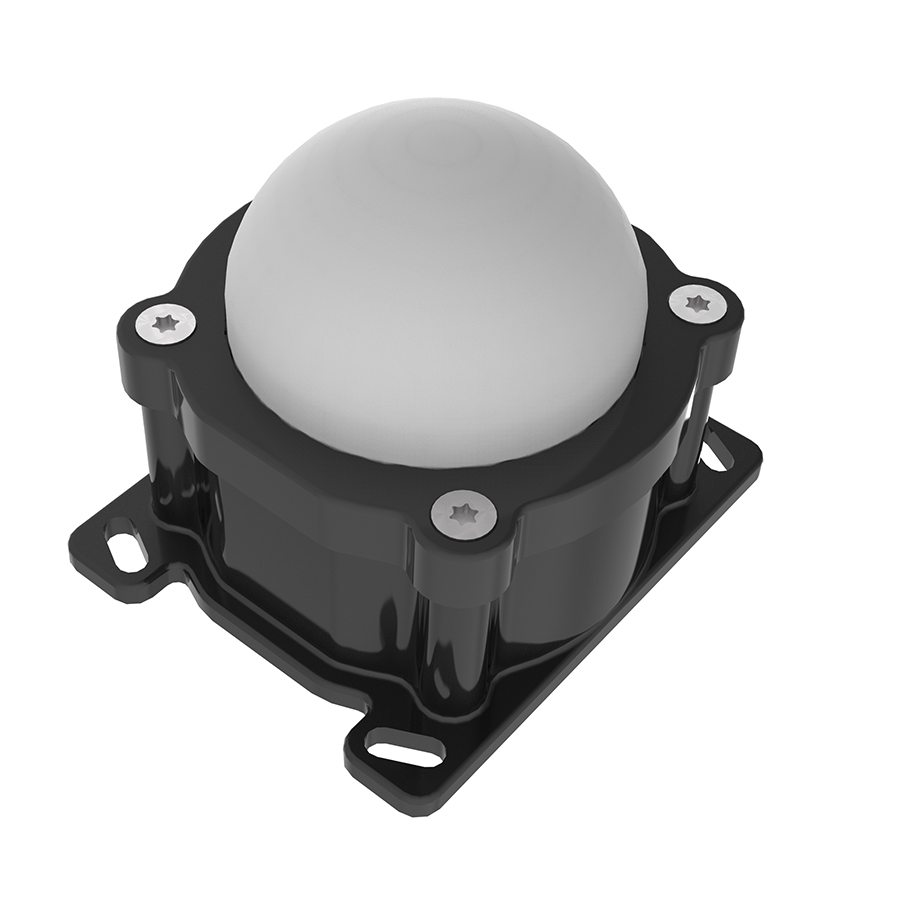

PD 60 DOME PIXEL DOT

Hera PD®60 is a point pixel fixture with direct view type. It has 18 pieces 3 in1 chip leds at high brightness. It is visible at sunlight. Maximum 32 devices can be connected to each other. It is in IP67 protection class. The connection is made with waterproof 5 Pin IP67 Push-Lock type connector. It provides special video solutions with maximum brightness. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. It resistance to UV lights. It is made of aluminum body resistant against the challenging weather conditions.

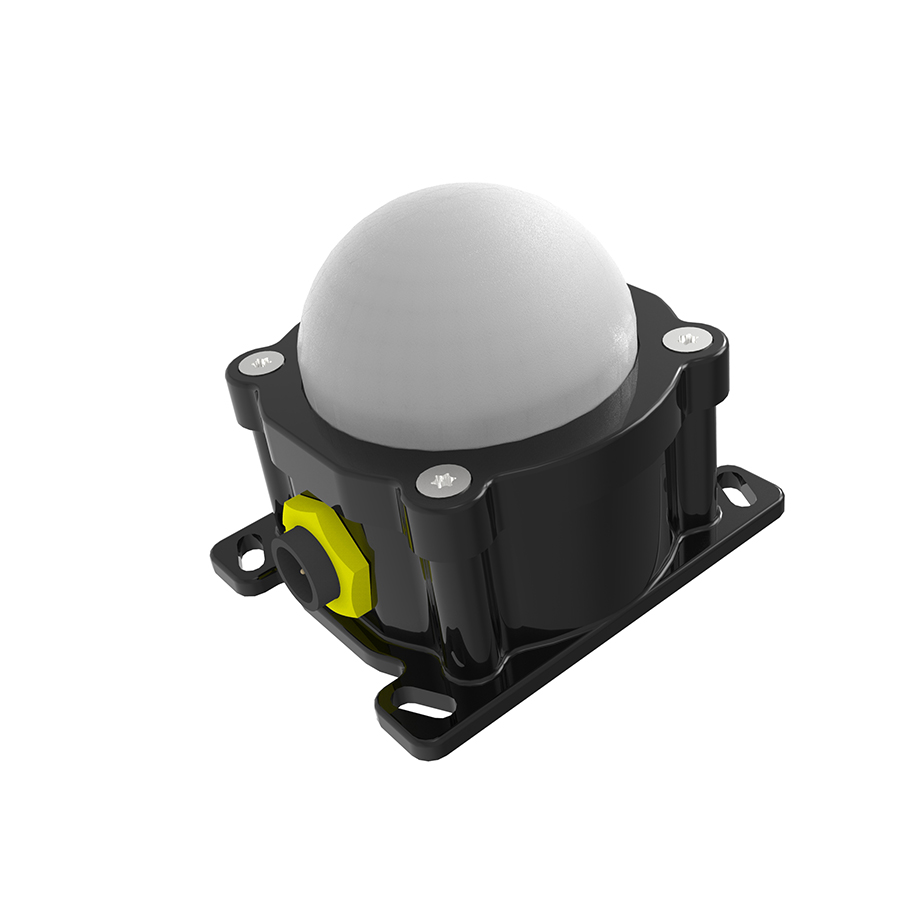

PD 60 S DOME PIXEL DOT

Hera PD®60 is a point pixel fixture with direct view type. It has 18 pieces 3 in1 chip leds at high brightness. It is visible at sunlight. Maximum 32 devices can be connected to each other. It is in IP67 protection class. The connection is made with waterproof 5 Pin IP67 Push-Lock type connector. It provides special video solutions with maximum brightness. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. It resistance to UV lights. It is made of aluminum body resistant against the challenging weather conditions.

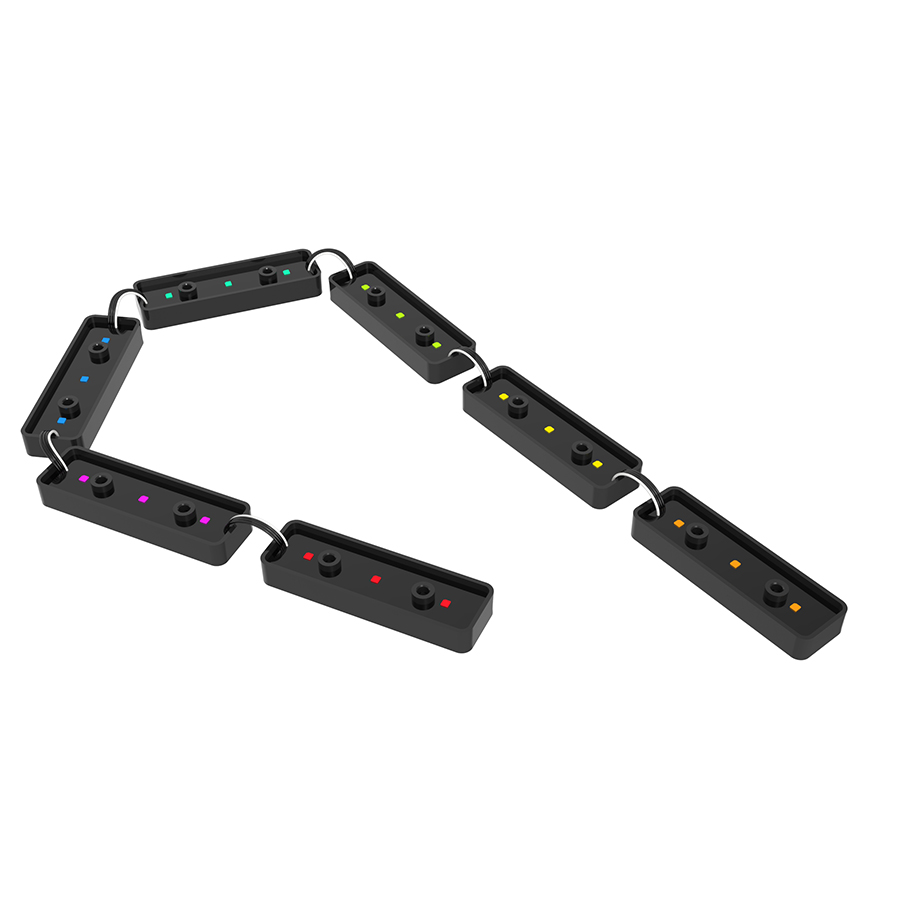

PD 130 CHAIN PIXELS

Hera PD®130 is a point pixel fixture with direct viewing type. It has 3 pieces 3 in1 chip leds at high brightness. It is visible at sunlight. Maximum 1 master 40 slave can connect to each other. It is in IP66 protection class. The connection is made with waterproof 4 Pin IP68 type connector for DMX and Power in input.  It provides special video solutions with maximum brightness. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with Master Unit RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 12V voltage. It resistance to UV lights. It is made of poly carbonate body resistant against the challenging weather conditions. It operates with 12 V outside power supply as feeding material.

3D VERTICAL TUBE SERIES

Hera 3D Vertical Tube® Series consist of four models such as 50-100-150-200cm. VT50 14 pixel 42 Channel, VT100 28 Pixel 84 Channel, VT150 42 Pixel 126 Channel, VT200 56 Pixel 168 Channel. Pixel pitch is 35 mm. Each pixel consists of 1 led. It is in IP65 protection class. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It is designed to use in stage and entertainment illumination. It operates with 48V voltage and applicable without voltage loss. Product assembly apparatus is designed in Push-Lock type. It remains stable and safe. It has high vibration resistance. It is easily demountable. IP68 is screwed on the chassis type connector and additional connections can be made with T cable in the accessories.

SWORD 25X1 TUBE SERIES

Sword® 25×1 Series consist of four models such as  30-50-100-150cm. 30cm 12 pixel 36 Channel, 50cm 20 Pixel 60 Channel, 100cm 40 Pixel 120 Channel, 150cm 60 Pixel 180 Channel. Pixel pitch is 25 mm. Each pixel consists of 1 led. It has options such as direct view or opaque cover with special polycarbonate alloy. It is in IP67 protection class. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. Product assembly apparatus is made from aluminum injection. It operates under challenging weather conditions.  It has high vibration resistance. It is easily demountable. It can be connected with IP68 screwed type connectors.

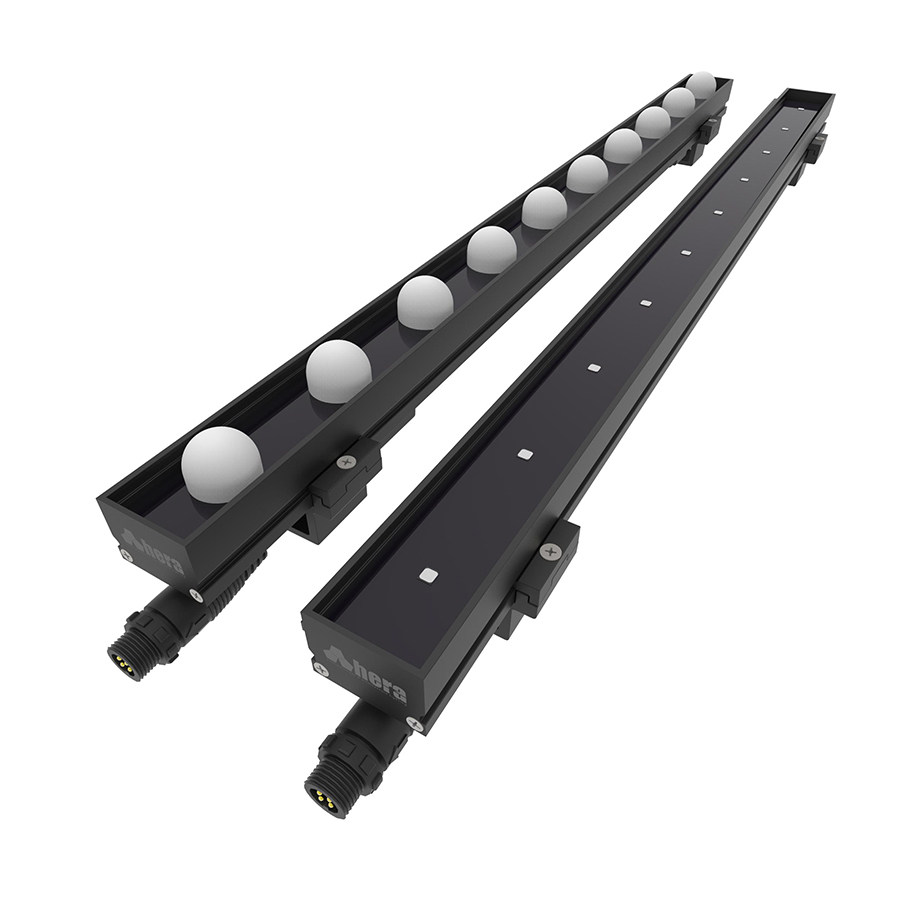

SWORD 50X1 TUBE SERIES

Sword® 50×1 Series consist of four models such as  30-50-100-150cm. 30cm 6 pixel 18 Channel, 50cm 10 Pixel 30 Channel, 100cm 20 Pixel 60 Channel, 150cm 30 Pixel 90 Channel. Pixel pitch is 50 mm. Each pixel consists of 1 led.  It has direct view or opaque dome model. It is in IP67 protection class. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. Product assembly apparatus is made from aluminum injection. It operates under challenging weather conditions. It has high vibration resistance. It is easily demountable. It can be connected with IP68 screwed type connectors.

SWORD 100X1 TUBE SERIES

Sword® 100×1 Series consist of four models such as  30-50-100-150cm. 30cm 3 pixel 9 Channel, 50cm 5 Pixel 15 Channel, 100cm 10 Pixel 30 Channel, 150cm 15 Pixel 45 Channel. Pixel pitch is 100 mm. Each pixel consists of 1 led. It has direct view or opaque dome model. It is in IP67 protection class. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. Product assembly apparatus is made from aluminum injection. It operates under challenging weather conditions. It has high vibration resistance. It is easily demountable. It can be connected with IP68 screwed type connectors

SWORD 100×4 TUBE SERIES

Sword® 100×4 Series consist of four models such as  30-50-100-150cm. 30cm 3 pixel 9 Channel, 50cm 5 Pixel 15 Channel, 100cm 10 Pixel 30 Channel, 150cm 15 Pixel 45 Channel. Pixel pitch is 100 mm. Each pixel consists of 4 led. It has options such as direct view or opaque cover with special polycarbonate alloy. It is in IP67 protection class. It offers customizable solutions pixel mapping with DMX 512 protocol. It can be addressed in batch with RDM Protocol. It has been designed to be used in the facade, building and stage illumination. It operates with 48V voltage and applicable without voltage loss. Product assembly apparatus is made from aluminum injection. It operates under challenging weather conditions. It has high vibration resistance. It is easily demountable. It can be connected with IP68 screwed type connectors.

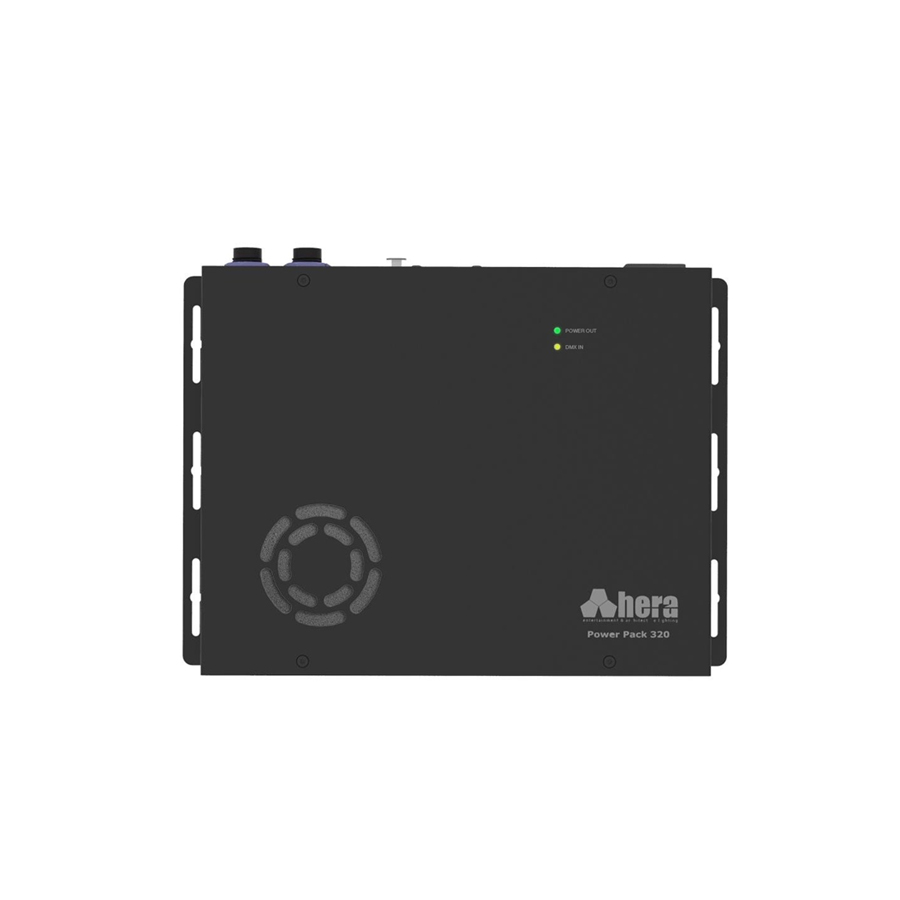

POWER PACK 320

Hera Power Pack® 320; consists of power supply unit and full isolated DMX splitter. DMX isolates the signal independently from each other and delivers it with 5 Pin Push-Lock type Connector to power and DMX output. Furthermore, it is delivered to the standard DMX output by isolating it. It has 90~264VAC 50/60Hz Universal operating voltage and 320 Watt power. It has active PFC. It is manufactured at two different types as 24V and 48V. It has been shaped from plate, having aluminum body. It is produced RAL9004 black as a standard. It can be assembled to the walls with the lobes at the sides.

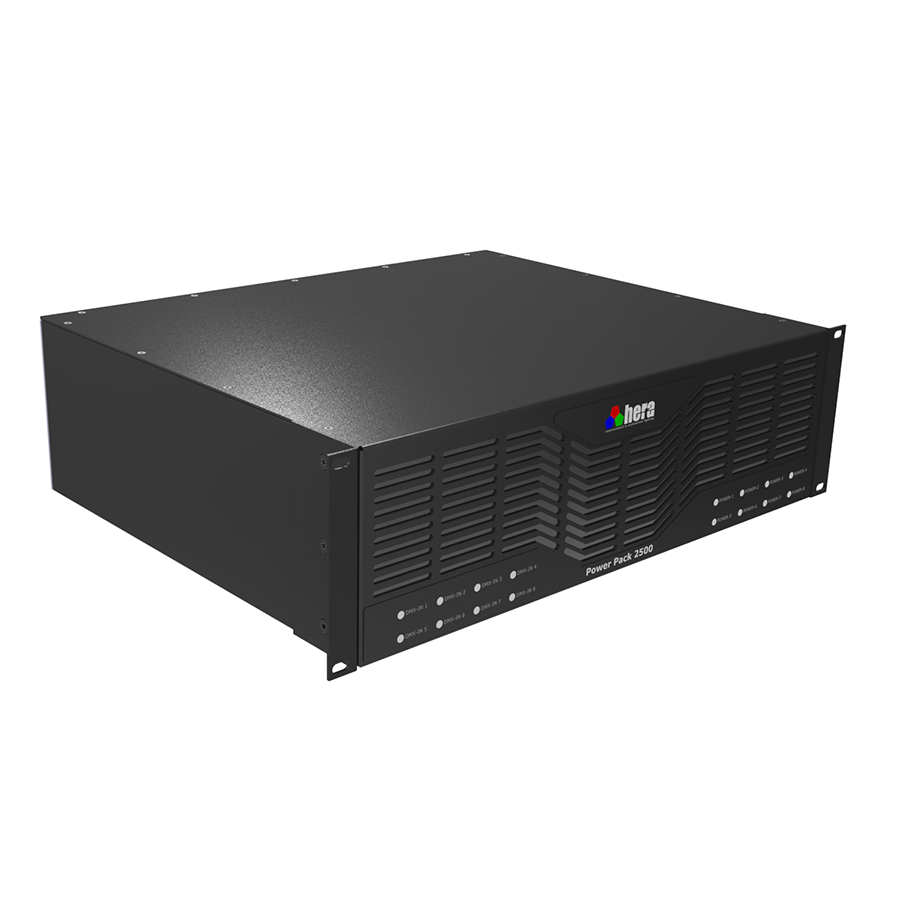

POWER PACK 2500

Hera Power Pack® 2500; consists of 8x320Watt power supply unit. DMX signal has been transformed into single connector with power units and exits as 5 Pin Push-Lock. It has 90~264VAC 50/60Hz Universal operating voltage and 8×320 Watt power. It has active PFC. It has standard 19inc 3U Rack type. It is manufactured at two different types as 24V and 48V. It has been shaped from plate, having aluminum body. It is produced RAL9004 black as a standard.
